Offset Glazed System

TC470 Series (Non-Thermal or Thermal)

Operation:
(2 1/4" x 4 1/2") For 1" Glass
ADD SELECTION
PDF Reference File
DXF CAD File
DWG CAD File
CATEGORY BROCHURE
TC470 Series
Product Information
+

Arcadia is working with NFRC regulations to provide “Component Modeling Approach (CMA) Certificates”.

TC470 THERMAL U-FACTORS*
CONFIGURATION AND SIZE
CENTER OF GLASS FIXED** FIXED GLASS TYPE
U-FACTOR 78 3/4″ x 78 3/4″ 120″X 120″
0.47 0.55 0.51 1/4″ Clear 1/2″ AIR 1/4″ Clear
0.35 0.45 0.41 1/4″ Clear (Low Emissivity) 1/2″ air 1/4″ Clear
0.29 0.41 0.36 1/4″ Tinted 1/2″ air (Low Emissivity)#3
0.24 0.36 0.32 1/4″ Clear (Low Emissivity) 1/2″ argon 1/4″ Clear
0.19 0.32 0.27 1/4″ Clear (low Emissivity) 1/2″ argon 1/4″ Clear (Low Emissivity)
0.19 0.30 0.25 1/4″ Clear (low Emissivity) 1/2″ argon*** 1/4″ Clear (Low Emissivity)
* Based on NFRC 100
** NFRC standard test size
*** Warm Edge Spacer
Product Details
+
Head Detail
1 Head Detail
2 Horizontal Detail
3 Sill Detail
4 Vertical Detail
5 Jamb Detail
6 Cornesport Detail
7 Door @ Jamb Detail
8 Door @ Vertical Detail
9 Door Header @ Transom Detail
10 Door Bottom Rail & Threshold Detail
11 Horizontal at Punched Opening
12 Head at Punched Transom
Cat Framing Center Glz Elev L

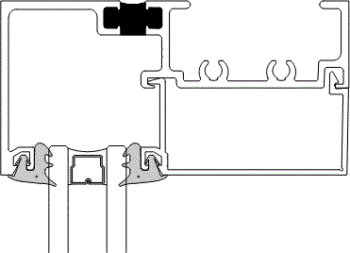

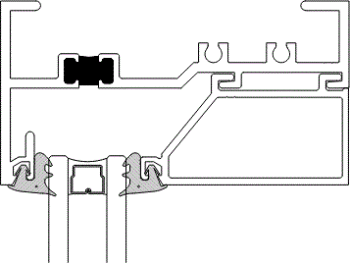

Section 1 — Head Detail
Framing Arcadia Thermal TC470 Detail 1 1 WEB
PDF Reference File
DXF CAD
DWG CAD

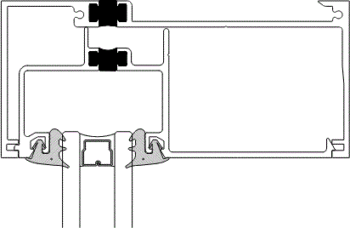

Framing Arcadia Thermal TC470 Detail 1 2 WEB
PDF Reference File
DXF CAD
DWG CAD

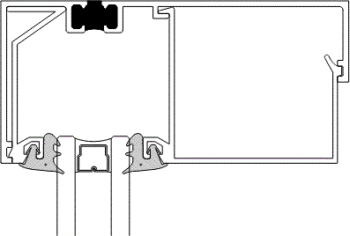

Framing Arcadia Thermal TC470 Detail 1 3 WEB
PDF Reference File
DXF CAD
DWG CAD
Framing Arcadia Thermal TC470 Detail 1 4 WEB
PDF Reference File
DXF CAD
DWG CAD
Framing Arcadia Thermal TC470 Detail 1 5 WEB
PDF Reference File
DXF CAD
DWG CAD
Framing Arcadia Thermal TC470 Detail 1 6 WEB
PDF Reference File
DXF CAD
DWG CAD
Framing Arcadia Thermal TC470 Detail 1 10 WEB
PDF Reference File
DXF CAD
DWG CAD
Product Downloads
+
CAD / Reference Files
FILE TYPE
PDF Reference File
PDF
DXF CAD File
DXF
DWG CAD File
DWG
BIM Model Files
FILE TYPE
BIM Model (Revit)
RVT
BIM Model (Revit)
RFA
BIM Model (AutoCAD)
DWG
BIM Model (AutoCAD)
DXF
BIM Model (SketchUp)
SKP
BIM Model (ArchiCAD)
MOD
CSI Specification Documents
FILE TYPE
CSI Guide Specification
PDF Document
CSI Guide Specification
Editable Word Document
Windload & Deadload Info
FILE TYPE
Windload & Deadload
PDF Document
Environmental Product Declaration (EPD) Documents
FILE TYPE
Environmental Product Declaration (EPD)
PDF Document
Declare Label
PDF Document
Parts Identification
FILE TYPE
Parts Identification
PDF Document
